Scenarios

Scenarios are a great way to connect with your customers at any point of their journey by using emails, push notifications or webhooks.

From sending a basic email to complex automated flows with multiple targeted segments and AB testing, scenarios are easily created using drag & drop.

You can watch this video to get an overview of the basic features in scenarios. Everything is covered in the textual guide too.

Why you should use scenarios

By connecting with your customers you can increase their engagement and retention, bring back lost customers or offer highly targeted offers based on the past behavior for every customer. Scenarios also allow you to automatize your communication based on your custom conditions.

Even though scenarios are incredibly powerful when combined with analytics, they are an independent module of Exponea. This means you can use them even if you don't plan on fully integrating your business with Exponea.

Creating a basic scenario

Open the scenario editor by going to Campaigns > Scenarios > Create new.

Adding, editing and connecting components

Every scenario is a set of components connected into a flow.

  • To add a component, click on the component you want to add or you can drag & drop it onto the board with your left mouse button.
  • To edit a component, double-click the component with your left mouse button. This will open a component-specific edit window. Click "save" after you are done.
  • To remove a component, select the component by clicking it with your left mouse button and then click on the trash icon, or hit backspace or delete on your keyboard.
  • To connect two components, click on the output connector on the right side of the first component and drag the line to the input connector on the left side of the second component, as shown in the animation below. Release your mouse once connected.
    • Now you have created a flow. Customers will pass through this flow starting from a trigger (e.g. On date) to operators (e.g. Condition) and finally into actions (e.g. Email).

📘

While in every meaningful scenario there should be at least one trigger and one action component, there can be multiple flows in a single scenario.

🚧

Scenario size recomendations:

There is a hard limit for how much data can be stored in one scenario (or email campaign) definition.
Following statements are taking into account average size of scenario node.
Using more nodes can quickly lead to internal error about scenario size limit.

  • Scenario should not use more than 100 nodes. Ideally, keep their number below 30 to avoid possible lags.
  • Scenario should not use more than 25 email nodes. This includes different language versions. The shorter your email is, the more nodes or translations you can use. As a workaround you can move parts of your email into html blocks. Content of such reference will not count towards given scenario size limit.

Moving, zooming and selecting multiple components

You can move your position on the canvas by clicking on an empty space and dragging your mouse. To select multiple components, hold shift and do the same. You can delete all selected components by pressing backspace on your keyboard. Zoom in or out using your mouse wheel. If using a touchpad, you can also move by sliding 2 fingers and zoom in/out by pinching 2 fingers. Keyboard shortcuts available: Press 1 to fit to screen, 2 to zoom to selection and 0 to reset zoom.

You can also click on the minimap in the bottom right corner to navigate your position.

🚧

Saving and executing a scenario

Don't forget to save your scenario by clicking the "Save" button in the top right corner. This will save the scenario for later and will not launch it. If you want to launch the scenario now, click the "Start" button. This means that the triggers in the scenario will now start streaming customers into the flow.

Test and preview

Before launching the scenario, you can preview how customers are predicted to flow through the nodes based on the conditions you defined. To do so, click on "TEST" tab located above the canvas.

The test will dry-run the campaign as if it was executed immediately, taking into consideration all policies, A/B splits, unsubscribes, and other aspects. Bear in mind, however, that this is only an estimate and the individual aspects may change over time.

Please note that it is not possible to use this if you use an "On event" trigger since it is unpredictable. If you still want to see how customers would flow through the individual conditions, insert the "Now" trigger and then replace it again before launch.

Usage warnings

In order to optimize your campaigns infrastructure, Scenarios check and inform about potential usage issues.

Results (and possible warnings) of these checks are shown as a warning message in the sidebar of the TEST tab, or in the “Confirm scenario execution” modal window when starting a campaign.

Currently, the warning messages have a purely informational purpose and should help you identify and resolve any usage issues that might negatively influence the performance of the given scenario(s) and/or all scenarios running in parallel.

Current implemented usage checks are for the following errors:

(1) Jinja condition error

  • Occurs when a Condition node containing jinja in some of its filter’s conditions process more than 100K customers in one run. This can be detrimental to the performance of the whole instance’s campaigns infrastructure.
  • Results in a warning message: "Too many customers processed by condition node #1 containing Jinja. Don't use Jinja in condition nodes for processing more than 100K customers in one run if the personalized filters are likely to be highly unique - i.e. almost every customer might have a different final filter."

(2) Set property action error

  • Occurs when the sum of customers entering all the Set attribute nodes of a campaign exceeds 1 million.
  • Results in a warning message: "Set attribute actions count exceeds recommended limit. Please, try limiting the "Set attribute" node usage to maximum 1M updates in one run."

(3) Dynamic wait action error

  • Occurs when a Wait node with a Dynamic time period parameter (containing jinja) is processing more than 200K customers.
  • Results in a warning message: "Dynamic wait node #2 is processing too many customers in one run. If possible consider reducing their count to less than 200K by using filtering conditions before letting them enter the wait node."

Evaluate

Once the scenario is active, you can open the "EVALUATE" tab to see how customers are actually passing through the flow in real-time. This helps with troubleshooting when a lot of customers unexpectedly get stuck somewhere in the scenario. Hover over each node to reveal how many customers have entered, successfully completed, or got stuck in that node.

When you are in the "EVALUATE" section, you can click on "Email campaign result" underneath the button to access the out-of-the-box dashboard that contains all key metrics for evaluating your email campaign or comparing conversions within your A/B testing. Under "Click map" you can find click heatmaps for analyzing your customer's interactions with your campaign. You can watch this video to learn more:

📘

Legacy Results

Under the tab Results you can still access our legacy email dashboard, which will be deprecated in the future.

What happens if I edit a running scenario?

Updating a node - the current users in the node (usually a very small number except wait nodes) finish the scenario with the old version and all new customers coming to that node (no matter where they're coming from) will flow according to the new version.

Deleting a node stops the execution of all unprocessed customers in the node, e.g. customers in the wait nodes will be lost. They won't continue to the next node.

Creating a new node or modifying node connection applies immediately, e.g. modifying outgoing connection from a wait node means that existing customers in the node will use the updated connection once they are finished waiting.

Scenario components explained

Let's have a look now at how each component works. Remember that you can specify each component by double-clicking on it once it has been placed on the canvas.

Triggers

Trigger

Description

Now

Will stream all customers to the flow immediately after execution. Once used in a live scenario, it will become inactive and you will need to refresh it manually to make it work again.

On date

Will stream all customers to the flow on the specified date and time. The timezone used is set in Settings > User Settings > Timezone.

Repeat

Will stream all customers to the flow repeatedly, based on the specified time condition. You can set daily, weekly and monthly runs and also specify the total time range to set the final date when the scenario should stop repeating the runs.

On event

Will stream a single customer to the flow every time the specified event is tracked to this customer.

Resetting triggers

For both Now and On date triggers, once used in a live scenario, they will become inactive. If you want to re-activate them, use the Reset trigger. In the picture below you can see the triggers as active on the left and the as inactive on the right, with two highlighted options how to reset them:

🚧

Add event nodes in Scenarios do not trigger your campaigns

Events which are added/generated from scenarios via add event nodes do not trigger scenarios with triggers waiting for that particular event.

🚧

Specifying events using derived attributes

It is not possible to specify events using derived attributes (running aggregates, expressions, event segmentations).

❗️

Parallel triggers overload in a single scenario

As the triggered actions will be processed in the order as requested, a single Scenario with parallel triggers might not work as expected. For example, if both 'On event' and 'On date' triggers are pulled simultaneously the 'On event' trigger would need to wait until the 'On date' trigger is fully processed despite the expectation that it would go into action right after a particular event is tracked. If there are multiple parallel triggers it is recommended to divide them across multiple Scenarios.

Actions

When a customer enters an action component, an action is executed. Each type of action has a unique 'action_id'. Read more about this in the System events article.

Action

Description

Email

Will try sending an email with the specified content (e.g. body of the email, sender, subject) to this customer's email. Learn how to create an email campaign in Exponea here.
-Attribute email must have value in order for a customer to receive an email campaign

SMS

Will try sending an SMS with the specified content to this customer's phone number. Learn how to create an SMS campaign in Exponea here.
-Attribute phone must have value in order for a customer to receive an SMS campaign

Retargeting

Will update your FB or Google audience based on the match of email, phone number or FB ID.
Read more about retargeting integrations:

Mobile push notifications

Will try sending a push notification with the specified content to the customer's mobile phone. Learn more about mobile push notifications.

Web push notifications

Will try sending a push notification with the specified content to the customer's web browser. Learn more about web push notifications here.

Webhook

Will try sending a custom HTTP request to a specified API (e.g. your server's address). Learn more about webhooks.

HTML

Will save a piece of HTML content that will be shown to the customer upon the visit of a connected webpage (only available in the JavaScript SDK), which is useful in the instance of homepage customization for different customer segments.

Facebook message

Will send a FB message to the customer. Learn more about Facebook messages.

📘

Locating action ID

To see a particular action ID, go to the Evaluation tab, hover your mouse over the node and the ID will be shown in the format of "#(number)".

🚧

Emailing a manually-chosen recipient

If the recipient is used in the scenario's email node is chosen manually, then the campaign policy for the frequency of delivery will be ignored.

Snippets

Snippets are smaller custom pieces of jinja, code, text, or HTML that can be saved and reused across campaigns and scenarios. Their use can range from saving frequently used Jinja macros, to saving snippets of text, such as the unsubscription sentence that you use in all your SMS campaigns. Read more about Snippets.

Operators

Operators are generally used to change the way customers move through the flow. There are the following types of Operators:

Operator

Description

Condition

Functions as a gate - it will stream customers who match the specified condition through the match (green) output connector and customers who don't match through the don't match (red) output connector.

After allowing personalization, some Jinja tags become available to use within the condition, e.g. trigger event properties, or report values. This, however, reduces performance and should thus be used with caution.

AB Split

Splits customers into two or more distinct groups based on the specified ratios. Note that AB test with an automatic winner distribution can only be used with Now and Scheduled triggers (AB test with manually set distribution can be used with On event too). Read more in the AB testing article.

Customer limit

Limits the number of customers that go through a scenario flow with an absolute number.

Label

A simple text label that you can use to name flows and add a description.

Set attribute

Assigns a new value to the specified customer attribute. It only works for string attributes; otherwise use a workaround through Webhooks.

Wait

After entering this node the customer will wait here for the specified amount of time before they are streamed to the flow again. Wait node can be set as a fixed time period, dynamic period based on other events, or it set based on the optimal send time for the specific customer in regard to when they are most likely to engage with the campaign.

📘

Relative time filters use the UTC timezone while absolute time filters use your custom timezone from Settings > User Settings > Timezone

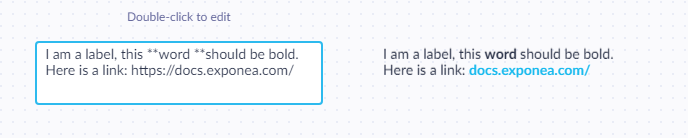

Labels

You can format label text as bold by:

  • marking a word an hitting ctrl+b
  • wrapping the word in ** (markup style) e.g. **bold word**

There is also an automatic link recognition; links are automatically recognized and clickable after editing.

Customer limit

🚧

You can only have up to 1000 distinct groups in a limit node, before it starts failing.

The customer limit allows you to set the maximum number of customers who can pass through the node. This can be very useful when your scenario leads your customers to a channel with a limited capacity. For example, you might have only limited capacity for the number of calls that your call-center can deal with within a day.

Customer limit node creates two outputs: a successful one for the customers within the limit and the unsuccessful one for the customers over the limit. It is at the moment when a particular customer arrives at the customer limit node in the scenario that it is decided to which output they will go. At first, all customers go to the successful output but once the threshold is reached all the rest go to the unsuccessful output. Since then, all customers will be falling into the unsuccessful output even for the next campaign runs until the number of customers passing through the node is reset back to zero. You can set a period reset of this number in the Specify customer limit reset period.

You can set the limit by filling the value of the Limit to # of customers. This value can either be an absolute number or a number referenced by jinja (references to the following can be used: metrics, reports, report_value_by_key, catalogs). Read more on jinja references.

You can also Allow drill-down group which lets you use jinja to add multiple limits per node based on the group - a separate limit on each segment of customers using the scenario. You might want to do this if you send out a competition that would be decided on the first-comes-first basis but where you also want to have a specific number of winners from different segments of customers. You can use the same variables as in webhooks like customer attributes, trigger event properties or webhook response. If you want to use the drill-down group as a parameter in the jinja of the limit the parameter is called limit_group.

📘

Example of the limit with a limit group

To look into catalog subsidiaries and look for an item that was used as a drill-down group, and reference limit attribute from the catalog item, use:
{{ catalogs.subsidiaries.item_by_id(limit_group).limit }}

Using optimal send time

Based on your customers' past behavior, the optimal send time option in the wait node allows you to automatically send out email campaigns to individual customers at a time, rounded to an hour, when they are most likely to click/open your email. Learn more about Optimal send time

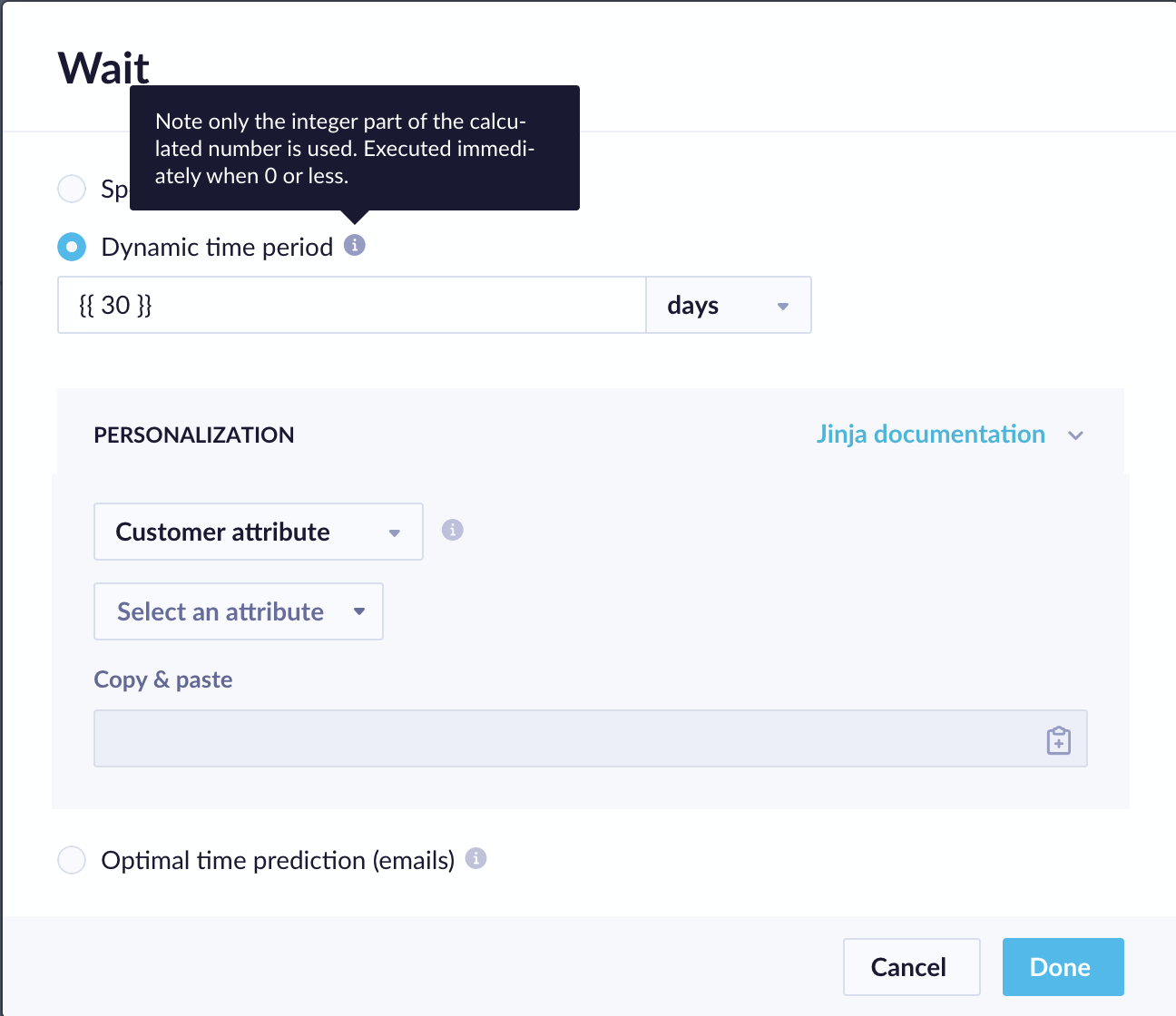

Using Dynamic Time

You can use the dynamic wait time to set a custom wait period using jinja. You can use some project metrics, aggregates, trigger event attributes, or any type of personalization.

Common usage of the dynamic wait time is to spread or throttle the campaign execution over some time period using the random number generator. E.g to spread the send approximately within 60 minutes you can use {{ range(0,60) | random }}.

If Wait time is set to hours, the number is rounded down (to integer). For example, when you calculate 1.8 hours wait, Wait node waits only 1 hour. If you want to round up, you can use the Jinja function round (can accept "ceil", "floor" or "common" parameter):

Wait {{ ((event.departure_time - time) / 3600) | round("ceil") }} hours

Wait node does not wait at all if wait value is zero or lower (executes following node right away).

Delivery of an SMS campaign can be either successfulor unsuccessful. Exponea tracks this information as an attribute of the campaign events.

Scenario version history

You can restore accidentally deleted versions and continue working on them. Scenario version history offers also the view of changes, showing specific nodes that have been changed in the scenario. Just go to the specific scenario, click on the three-dots menu and go to Scenario history.

You will be able to preview the historical changes by clicking on each version, where you can revert to any version or make a copy of it. Nodes that have been changed in that version will be highlighted.

In the list of scenarios view, you can also restore a deleted scenario.

Scenario Status

You can filter scenarios that you want to see on your main page through Status filter

The following labels mean:

  • Active - your campaign is running (newly collected event will trigger an action)
  • Inactive - your campaign stopped (nothing happens anymore)
  • Finishing - your campaign has been requested to stop, however, already running tasks will finish first and afterwards the campaign will change its status to Inactive
  • Draft - Initial state, your scenario has not been started yet

System Scenarios

Using the System Scenarios option allows you to access and check on Email Campaigns as every Email Campaign is in the background created as a System Scenario.

Clone to another project

This feature allows you to clone Scenarios to other projects you have access to. Read more about cloning.
